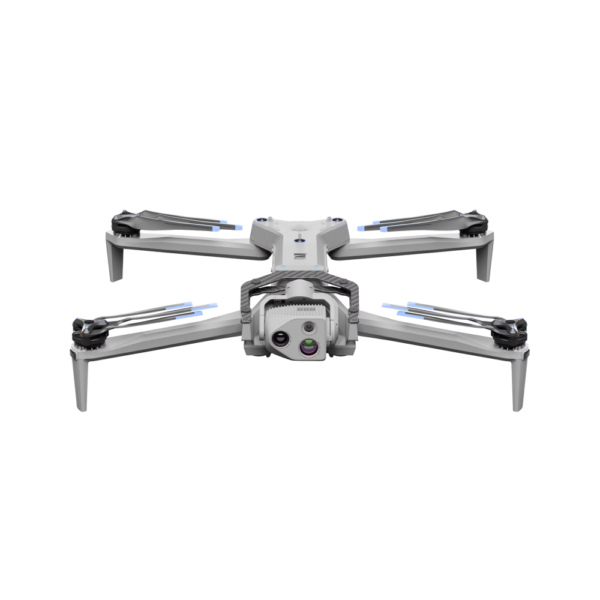

Skydio X10D

Ask inquiry

The sUAS that delivers EW resilience and survivability on the toughest battlefields in the world. Dual-use innovation delivers the best sensors on a drone this size piloted by the most advanced AI in the sky, ready to scale.

Maintain connectivity in the face of GPS and communication jamming – and get your drones back with vision-only return flights

Achieve mission success with the ability to:

Dynamically switch channels with a powerful multiband radio
Increase survivability in GNSS-denied or spoofed environments with Visual Inertial Odometry (VIO) at high altitudes up to several kilometers
Navigate and return autonomously in GPS-denied environments with Anchor Points, using vision-based reference placement on the map

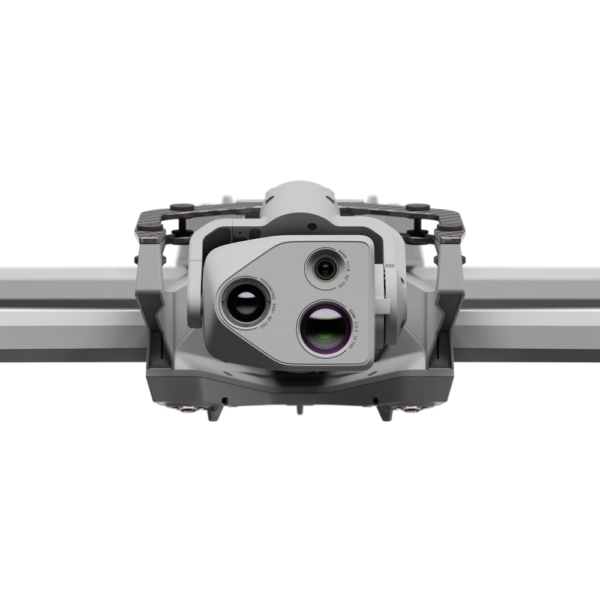

Visionary cameras to get the job done

Packing more megapixels and better optics than any drone its size, Skydio X10D boasts modular, high-resolution visual and radiometric thermal cameras. So you can gain decision-making advantage with precise, accurate information.

Description

Technical Specifications:

Startup Time Under: 40 seconds
Dimensions (Unfolded): 79.0 × 65.0 × 14.5 cm (31.1″ × 25.6″ × 5.7″)
Dimensions (Folded, without battery): 35.05 × 16.51 × 11.94 cm (13.8″ × 6.5″ × 4.7″)
Weight (Including Batteries):
– Connect SL: 2.11 kg (4.65 lbs)
– Connect MH: 2.14 kg (4.72 lbs)
Maximum Takeoff Weight: 2.49 kg (5.49 lbs)
Operation Frequency
– Connect SL: 5180–5825 MHz
– Connect MH: 1790–1850 MHz, 2040–2110 MHz, 2200–2300 MHz, 2300–2390 MHz, 2400–2500 MHz
Transmitter Power (EIRP)
– Connect SL: 34.3 dBm (2.4 GHz)
– Connect MH: 38 dBm
Hovering Accuracy
– VIO: ±10 cm
– GNSS: ±1 m
Maximum Angular Velocity
– Yaw: 100°/s
– Roll/Pitch: 225°/s
– Maximum Tilt Angle 40°
Maximum Ascent Speed 6 m/s (13.4 mph)
Maximum Descent Speed 4 m/s (9.0 mph)
Maximum Non-Vertical Descent Speed 6 m/s (13.4 mph)
Maximum Horizontal Speed 20 m/s (45 mph)
Maximum Horizontal Speed (Obstacle Avoidance Enabled) 16 m/s (36 mph)
Maximum Service Ceiling 4,572 m (15,000 ft) density altitude
Maximum Wind/Gust Resistance Up to 12.8 m/s (28 mph)
Maximum Hover Time 35 minutes
Maximum Flight Time Up to 40 minutes*
Processors
– NVIDIA Jetson Orin SoC
– Qualcomm QRB5165 SoC
Ingress Protection Rating: IP55
GNSS Support: GPS, Galileo, GLONASS, BeiDou
Geofence Restrictions: None
Operating Temperature: -20°C to +45°C (-4°F to 113°F)
Wireless Range (Line of Sight)
– Connect SL: Up to 12 km (7.5 miles)
– Connect MH: Up to 10 km (6.2 miles)
Wireless Networking (Media Offload): N/A
Obstacle Avoidance: True 360° Coverage
