Dronetag Scout
The Dronetag Scout is a high-performance Remote ID receiver designed for continuous airspace monitoring and drone detection. It passively detects and identifies Remote ID-equipped drones and their pilots in real time, providing reliable situational awareness for airports, critical infrastructure, public safety, law enforcement, and industrial facilities. With flexible deployment options, onboard drone identification, and support for cloud or fully offline operation, Scout integrates seamlessly into existing security and UTM ecosystems while delivering long-range coverage in a rugged, weatherproof design.
Technical Specifications
- Detection Range: Up to 10 km (6 mi) with omnidirectional antennas; up to 25 km (15 mi) with directional antennas
- Supported Frequencies: 2.4 GHz and 5 GHz
- Supported Protocols: Bluetooth 4/5, Wi-Fi Beacon, Wi-Fi NaN (Broadcast Remote ID)
- Remote ID Standards: ASTM F3411-22A, EN 4709-002
- Detection Latency: < 0.5 seconds
- Power Supply: PoE+ (IEEE 802.3at), compatible with PoE (802.3af)
- Power Consumption: 6 W typical, 10 W maximum
- Ingress Protection: IP67 / NEMA-6
- Operating Temperature: -20°C to +50°C
- Dimensions: 220 × 220 × 104 mm (without antennas)
- Weight: 2.2 kg (without antennas)

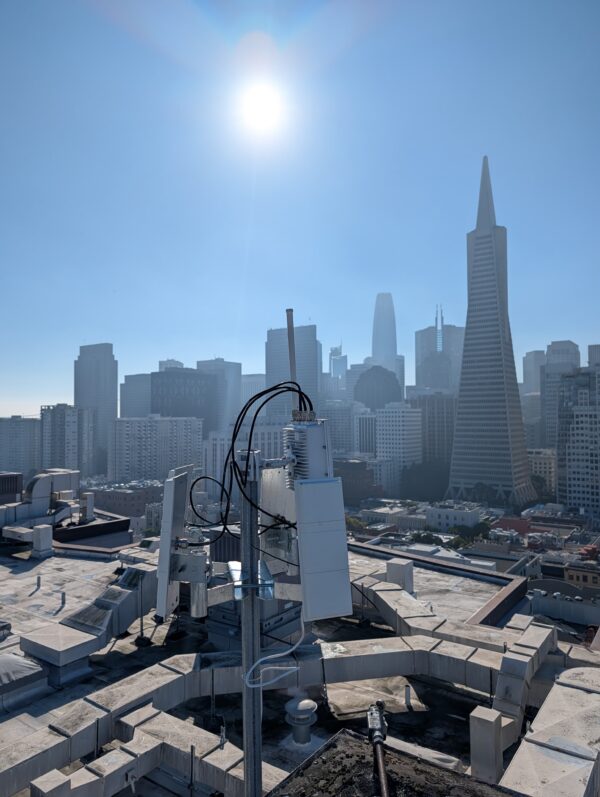

- Mounting Options: Pole or wall mount
- Connectivity: Ethernet, optional 4G/LTE modem
- Operating Modes: Sensor, Sensor+, Cloud, On-Premise
- Data Integration: API, MQTT, Webhooks, TAK, SafeSky, Aloft, SAPIENT compatible
- Compliance: FCC, CE
- Built-in GNSS: Yes
Key Features
- Passive detection with no RF emissions
- Dual-band Remote ID receiver
- Onboard drone manufacturer and model identification
- Real-time drone and pilot location tracking
- Local data logging for post-event analysis

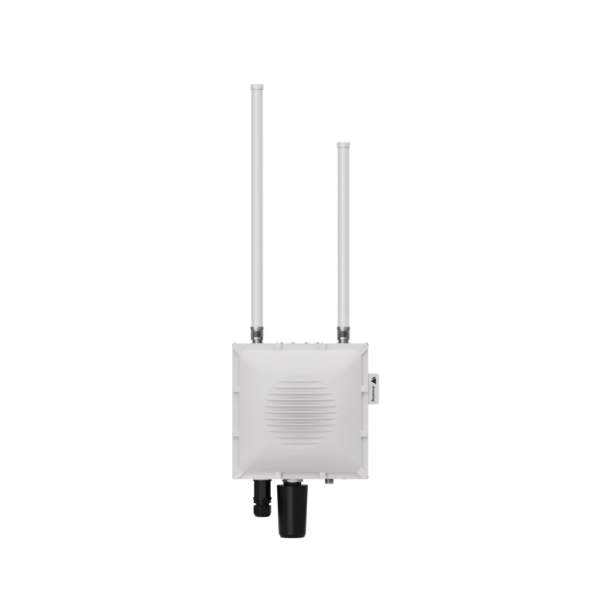

- Modular omnidirectional and directional antenna configurations
- Expandable with multiple Scout units for wide-area coverage

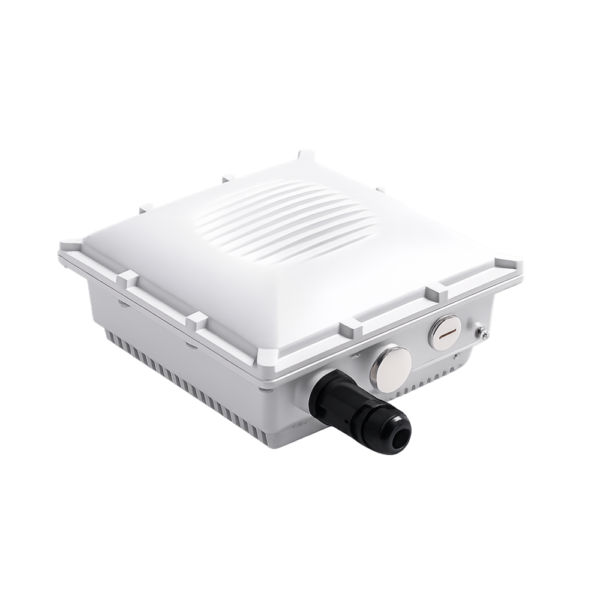

- Rugged IP67 aluminum enclosure with built-in heating and passive cooling
